Firmware Version |
|
15323 |
|

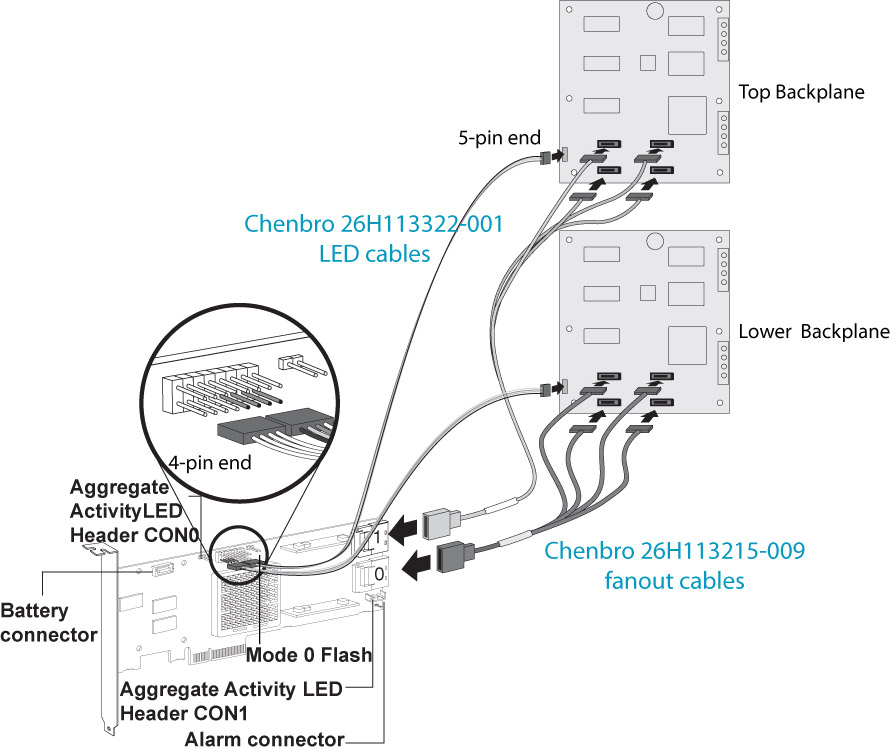

Cable Requirements: Data cable internal Mini Serial Attached SCSI x4 (SFF-8087) to (4) SATA, 2 x LED cable
Chenbro Order Number: 26H113215-009 (data cable) Chenbro Order Number: 26H113322-001 (LED cable) |
||
|
Description |
Adaptec 3805 Connector |
Backplane Connector |
|
Lower Backplane |
||
|
26H113215-009 |
CON0 - 0 |
CN13 |
|
CON0 - 1 |
CN22 | |
|
CON0 - 2 |
CN33 | |
|
CON0 - 3 |
CN42 | |
|
26H113322-001 |
J10 pin 10 |
CN4 pin 1 |
|
J10 pin 12 |
CN4 pin 2 | |
|
J10 pin 14 |
CN4 pin 3 | |
|
J10 pin 16 |
CN4 pin 5 | |
|
Top Backplane |
||
|
26H113215-009 |
CON1 - 0 |
CN13 |
|
CON1 - 1 |
CN22 | |
|
CON1 - 2 |
CN33 | |
|
CON1 - 3 |
CN42 | |
|
26H113322-001 |
J10 pin 2 |
CN4 pin 1 |
|
J10 pin 4 |
CN4 pin 2 | |
|
J10 pin 6 |
CN4 pin 3 | |
|
J10 pin 8 |
CN4 pin 4 | |
