Firmware Version |
|
b12379 or higher |
|
Cable Requirements: Data cable SFF-8087 to (4) SATA with Sideband Order Number: 2247000-R Model: ACK-I-mSASx4-4SATAx1-SB-0.5M R |
||
|
Description |
Adaptec 3405 Connector |
810TQ Connector |
|
2247000-R #1 |
CON0 - 0 |
J5 |
|
|
CON0 - 1 |
J6 |
|
|
CON0 - not used |
J7 |
|
|
CON0 - not used |
J8 |
|
|
CON0 - Sideband |
JP51 |
|
SEP Vendor |
|
AMI MG9071 |
Use one of the following Jumper settings I2C OR SGPIO:
|
Jumper Settings |
|
|
|

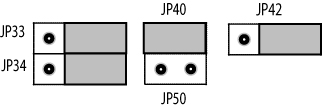

I2C Jumper Placement |
| |
|
Backplane Type 1 (1) = JP34 |
2-3 |
|
|
Controller Type 1 (1) = JP33 |
2-3 |
|
|
I2C Reset #1 = JP50 |
ON |
|
|
SDout #1 = JP40 |
OFF |
|
|
Backplane Type 2 (2) = JP42 |
2-3 |
|
OR
|
Jumper Settings |
|
|
|
SGPIO Jumper Placement |
| |
|
Backplane Type 1 (1) = JP34 |
1-2 |
|
|
Controller Type 1 (1) = JP33 |
1-2 |
|
|
I2C Reset #1 = JP50 |
OFF |
|
|
SDout #1 = JP40 |
ON |
|
|
Backplane Type 2 (2) = JP42 |
1-2 |
|
